Badger By-Pass

What is Badger By-Pass?

What is Badger By-Pass?

Badger By-Pass is a naturally processed, heat treated Soybean meal specifically designed to accommodate the demand of today’s high producing dairy cow.  Locally sourced soybeans of high quality, are roasted and steeped, at controlled temperatures over a specific time to create the finest bypass protein product available.  The cooking process avails itself to not only protecting the protein from rumen digestibility, but also improves the digestibility of the meal in the small intestine.  This makes critical Amino acids such as Lysine and Methionine, which are found in high concentrations in soy, intact and available to the cow.  Our exclusive treatment procedure also denatures poly unsaturated fats to more rumen inert fats, thus reducing the incidence of milk fat depression often associated with feeding vegetable oils.  The soyhulls and gums associated with the raw bean are returned to the final meal, increasing soluble fiber and Net Energy of Lactation.

Badger By-Pass is produced in the heart of dairy country, from Wisconsin Farms, for Wisconsin dairies.  As transportation costs climb, staying local for a high-quality product just makes sense.

Here are what high producing herds are doing…

Dr. L.E. Chase, Cornell University, analyzed the highest producing herds in the world whose nutritionists would share information and the rations were fed consistently over time. Energy corrected milk was 110.8 to high pens, Fat 3.77 %, Protein 3.06%.  Of the 53 groups selected, the preferred protein feed fed to high groups was Expelled soybean meal, like Badger By-Pass. 79% of respondents feed an expelled by pass SBM.  60% of the highest producing farms used a combination of SBM and Expellers SBM.  It is reasonable to think the other combination of popular protein products used was Canola and Expellers, as the Rumen Degradable Protein content of Canola would complement a high bypass, energy dense product such as Badger By-Pass.

Protein Feed Ranking Number of herds (53) % of herds
Methionine product 1 43 81%
Expeller soybean meal 2 42 79%
Soybean meal 3 38 72%
Canola 4 36 68%
Urea 5 29 55%
Blood meal 6 24 45%
Animal Protein blend 7 21 40%
Distillers grain 8 19 35%
Roasted soybeans 9 12 23%
Lysine product 10 11 21%
Lys or Met not used 11 10 19%
Corn Gluten Feed 12 8 15%
Corn Gluten Meal 13 6 11%
Corn Germ Meal 13 6 11%

Your protein makes all the difference

Your protein makes all the difference

High producing cows require two kinds of protein, the protein that is fed in the diet, and the microbial protein they make in the rumen.  What is fed to them should maximize the ability of the rumen to make microbial protein, the principle source of protein she relys on, and Rumen Undegradable Protein (RUP).  This protein should supply the cow the Essential Amino Acids (EAA) that limit her potential to make milk.  Proteins rich in RUP EAA’s are animal proteins and vegetable proteins.  But not all proteins are created equally.  Ideally, RUP would be 100% digestible, but it is not unfortunately.  Some bypass proteins, bypass the cow all together, representing lost income on the ground and precious space in the diet that could have been filled with something cheaper or more beneficial.  The following table presents 5 common protein sources by rank of the most digestible protein to the least.

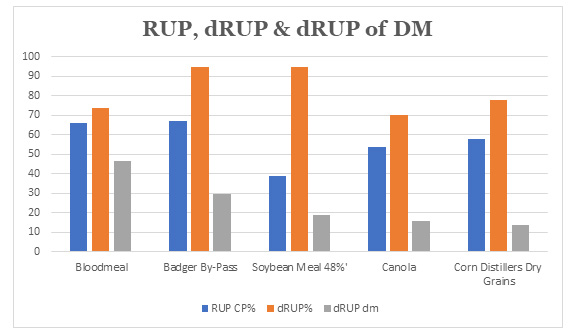

Protein source rank based on digestibility of RUP

Bloodmeal Badger Bypass 48% SBM Canola meal Corn DDG
Rank 1 2 3 4 5
CP 95 46.6 51.5 41.7 30.3
RUP % CP 66 67 39 54 58
RUP Dig % 74 95 95 70 78
dRUP % DM 46.4 29.7 19.1 15.8 13.7

About Images

Bypass protein needs to be affordable to make it work

All protein sources have different levels of EAA’s and tend to compliment one another when fed in combination. Based on locality of the protein source, price per ton can drive some proteins out of formulation and make others more attractive. The trick is to evaluate the protein types equally. Perdue Agri evaluated 7 protein sources to determine how many lbs. As Fed, it would require by feedstuff, to produce 100g of metabolizable protein in the cow. They indexed the Amino Acids from AA profile of the feed source and NASEM, 2021 milk protein prediction equation relative to SBM, 48% to perform the evaluation. The following table presents the Amino Acid profile index, the amount (lbs) each feed to produce 100 grams of Metabolizable Protein (MP) the cost per ton, cost as fed to produce 100g of MP and rank of each feedstuff based on its cost effectiveness.

Amino Acid Index ranking cost effectiveness of Protein feedstuffs

Feedstuff AA Index Lbs AF to make 100g MP $/ton feedstuff $/100g MP Rank
Badger B.P. 141 0.70 $432 $0.15 1
SBM 48% 100 1.00 $472 $0.24 3
Canola 82 1.22 $400 $0.244 4
DDG 75 1.30 $263 $0.17 2
Feathermeal 166 0.45 $1,000 $0.25 6
zBloodmeal 242 0.50 $1,200 0.25 5

Fear not RUFAL with Badger ByPass

RUFAL stands for Rumen Unsaturated Fatty Acid Load and is best used to trouble shoot Milk Fat Depression (MFD) events. The cooking process used to manufacture Badger ByPass denatures the fatty acids in the raw soybean into a more Rumen inert form that doesn’t alter rumen bacteria to the extent that other vegetable oils do. Linoleic acid, C18:2, is the most prevalent fatty acid found in soybeans. Our cooking process reduces, almost in half, the linolenic acids that can contribute to MFD and increases the Oleic fraction which is much less toxic to fiber digesting rumen bacteria responsible for MF%.

*Fatty acid as a % of TFA from CNCPS library
**Fatty acid as a % of TFA data rolling average as reported by Dairyland Labs, Arcadia, WI

Lab Analysis

Quality control is paramount to producing Badger ByPass consistently. Each batch is sampled and tested daily for key nutritional indicators. Compiling data from a third party lab, RockRiver, we analyzed Badger By-Pass and two other regional Expeller meal products that were averaged over a 90 day period.

Nutrient Badger By-Pass Expeller meal
Crude Protein% 46.4 47.9
Available CP% 45.9 44.8
RUP CP% 67 65
RUP % Intesinal digestibility 98.3 97.0
Fat (EE) 7.7 9.2
dRUP of DM% 30.6 28.2
Net Energy Lact. 3x Mcal/lb 98 98

(Rockriver lab 8/24/2022) Expeller meal samples avg. from 2 other regional suppliers

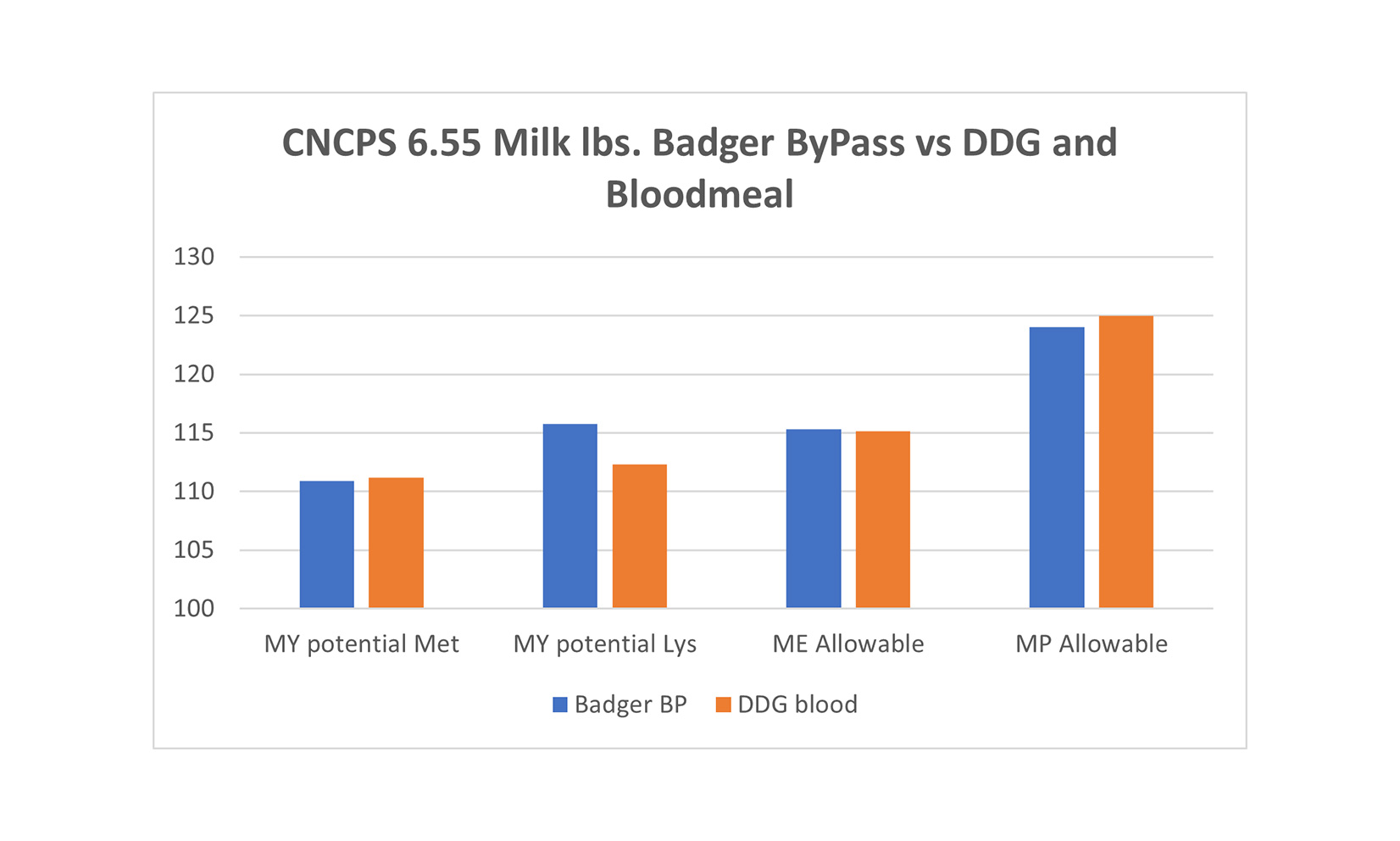

Replacing DDG and Blood with Badger ByPass saves $0.26 per hd/day.

CNCPS 6.55 was used to model the diet of multiparous Holstein cow, 150 DIM, 100 lbs of 4.0% BF 3.2% MP and 65 days pregnant. Forages, grain and additives were held constant, and proteins were allowed to float to meet protein and amino acid requirements.

Badger Bypass Based diet DDG Based diet
Ingredient $/ ton As Fed/d DM% As Fed/d DM%
Corn Silage 32% 60 79.0 38.9 79.0 38.9
Alf. Silage 37 NDF 90 24.3 13.1 24.3 13.1
Fine Gr. Corn 230 13.2 17.8 13.2 17.8
Badger By Pass 400 5.5 7.5 - -
Distillers Dry Grains 275 - - 5.0 7.0
Soybean Hulls 350 5.1 7.1 1.5 2.1
Alfalfa Hay 250 5.0 6.9 5.0 6.9
SBM 47.5% 473 2.5 3.4 6.5 7.6
Corn Gluten Feed 250 2.0 2.8 2.0 2.8
Vitamin mineral mix 310 1.5 2.3 1.5 2.3
Urea 1000 0.15 0.23 0.15 0.23
Bloodmeal 1200 - - 1.0 1.4
Smartamine M 14,700 0.02 0.03 0.02 0.03

Badger ByPass DDG / Bloodmeal
Lysine : Met ratio 2.93 2.85
RUFAL 2.12 % 2.35 %
Cost $/hd-day $ 8.87 $ 9.13
